A large variety of Chart Recorders are available for various applications from temperature with thermocouples RTD's or with analog inputs of voltage or current for measuring pressure, speed, level, flow or any other process parameter. These Chart Recorders are configurable and are available with single or multiple inputs up to 6 pens.

Strip Chart Recorders are available from 100 mm (4") to 180 mm (7") with a wide variety of features like alarms current and voltage outputs or digital communications.

Circular Chart Recorders come in 6, 8, or 10" chart diameter sizes and are available with user selectable inputs and alarm or retransmission outputs.

OEM Chart Recorders are available as a skeleton units without case and door or with just front plastic covers for panel mounting. OEM Chart Recorders are available with configurable inputs and 2 DPPT relay outputs in 1 or 2 pen versions. The chart sizes are 4, 6, 8, and 10".

Chart Recorders Features:

Number of inputs. . . . . . 1 or 2 3 or 6
Input Signals. . . . . . . .RTD's, Thermocouples Volts millivolts mAmps
recording range. . . . . . .Scalable full width of chart
recording System. . . . . . Ink Cartridge
chart length. . . . . . . . 15.5 Meters
Chart Speeds. . . . . . . . 5 to 1500 mm/Hr
Accu racy. . . . . . . . . .+/- 0.15 %
Size. . . . . . . . . . . . 144 x 144 x 285 mm
Alarms. . . . . . . . . . . 3 amps 240 volts AC

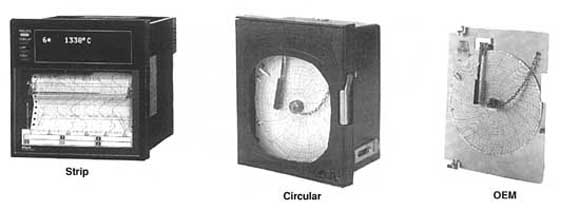

180 mm Strip Chart Recorder

Number of inputs. . . . . . 6 or 12 continuous or intermittent recording
Input Signals. . . . . . . .RTD's, Thermocouples Volts millivolts mAmps
recording range. . . . . . .Scalable full width of chart recording
System. . . . . . . . . . . Ink Jet
Chart length. . . . . . . . 20 Meters
Chart Speeds. . . . . . . . 5 to 300 mm/hr continuous recording
. . . . . . . . . . . . . . 310 to 1500 mm/hr intermittent recording
Accuracy. . . . . . . . . . +/- 0.15 % + 1 digit
Size. . . . . . . . . . . . 288 x 288 x 199
Alarms. . . . . . . . . . . 3 Amps 240 volts AC

Circular Chart Recorder

Number of inputs. . . . . . Single or dual inputs
Input Signals. . . . . . . .RTD's, Thermocouples 0-5 volts 4-20 mAmps
recording range. . . . . . .Scalable full width of chart
recording System. . . . . . Ink Cartridge
chart Sizes. . . . . . . . .4, 6, 8, and 10"
Chart Speeds. . . . . . . . 0.1 to 168 hrs
Accu racy. . . . . . . . .  0.25 %
Size . . . . . . . . . . . .13.14"Hx15.13Wx3.63"D
Alarms. . . . . . . . . . . dual alarms 3 Amps 240 VAC

OEMCircular Chart Recorder

Number of inputs. . . . . . Single or dual inputs
Input Signals. . . . . . . .RTD's, Thermocouples 0-5 volts 4-20 mAmps
recording range. . . . . . .Scalable full width of chart
Recording System. . . . . . Ink Cartridge
Chart Sizes. . . . . . . . .4, 6, 8, and 10"
Chart Speeds. . . . . . . . 0.1 to 168 hrs
Accuracy. . . . . . . . . . Temperature +/- 0.25ºC or 0.5º
