 EasyLog
model EL-USB series products are a line of low cost, compact,
battery-operated data loggers with built-in memory and USB interface.
Each product in the line offers a specific measurement function
and range (see table below). Features shared by all EasyLog
data loggers are:
-
Programmable high and low alarm thresholds.
-
All data is recorded to built-in,
non-volatile memory. EasyLog data loggers do not lose
readings when the battery is discharged or replaced.
-
Automatic time and date stamping of
logged data.
-
Program the logger to begin recording
immediately, or at a specific date and time.
-
Bright, multi-color LEDs indicate
status and alarm
conditions during logging.
|
-
Built-in USB interface for easy setup
using any PC.
-
Built-in, replaceable lithium battery
(provided).
-
Intrinsic isolation for voltage and
current measurements.
-
Removable cover protects the USB interface.
-
Removable clip secures the instrument
during transport or deployment.
-
EasyLog application software for data
logger setup, data download, and analysis.
|
EasyLog USB
Data Logger Models
-
EL-USB-TC-LCD
- Thermocouple Data Logger with LCD and USB Interface
- EL-USB-2-LCD
- Humidity, Temperature Humidity, Temperature and Dew Point
Data Logger with LCD
- EL-2 - measures,
displays, records and controls temperature, humidity, pH,
voltage, current, etc.
- EL-USB-3
- Voltage USB Data Logger
- EL-USB-4
- 4-20mA Current Loop USB Data Logger
- EL-USB-RT -
Real-time USB Temperature & Humidity Monitor
EasyLog model EL-USB series products are a line of low cost,
compact, battery-operated data loggers with built-in memory
and USB interface. Each product in the line offers a specific
measurement function and range (see table).
EasyLog Products
for Any Application
From temperature and humidity to carbon monoxide trending,
there's an EasyLog data logger that's right for you:
|
|
Model
EL-USB
|
|
Function
|
Range
|
1
|
1
PRO
|
2
|
2+
|
2
LCD
|
2
LCD+
|
3
|
4
|
TC
|
TC
LCD
|
CO
|
RT
|
|
Temperature
|
-35 to
+80°C
(-31 to +176°F)
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
Temperature
|
-40 to
+125°C
(-40 to +257°F)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Humidity
temperature, dew point
|
0 to 100%
RH
-35 to +80°C
(-31 to +176°F)
|
|
|
* |
* |
*
|
* |
|
|
|
|
|
|
|
Voltage
|
0 to 30
VDC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Process
current
|
4 to 20
mA
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Thermocouple
(no display)
|
-130 to
+900°C
(J-type)
-200 to +1300°C
(K-type)
-200 to +350°C
(T-type)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Thermocouple
(with display)
|
-100 to
+900°C
(J-type)
-200 to +1300°C
(K-type)
-200 to +400°C
(T-type)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Carbon
monoxide
|
0 to 1000
ppm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PC connected
Temperature, Humidity, Dew point
|
0 to 100%
RH
-20 to +70°C
(-4 to +158°F)
|
|
|
|
|
|
|
|
|
|
|
|
|
*EL-USB-2+ provides higher accuracy measurements than the
EL-USB-2 and the EL-USB-2-LCD.
Easy to Program
and Deploy
Getting an EasyLogger product ready to acquire data is simple:
- Remove the protective USB cover.

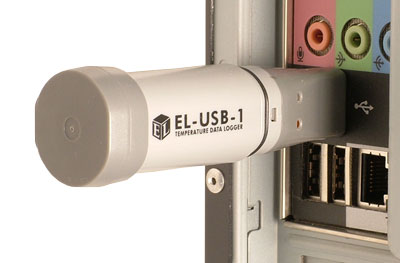

- Plug the instrument into any convenient USB port.
- Program the data logger with the provided EasyLog software:
- Give the logger a unique name (convenient when deploying
multiple units).
- Select the required sample rate.

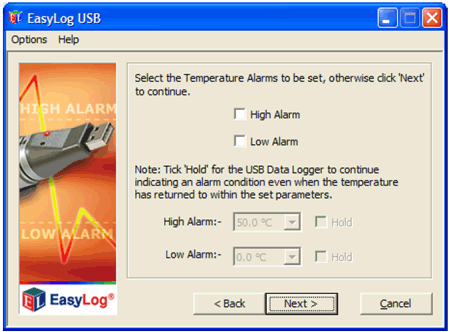

- Select high and/or low alarm thresholds.
- Select the specific date and time to begin logging.
Now remove the data logger from the USB port, replace the
USB cover, and deploy the instrument wherever you need it.
Easy to Upload
and Analyze Data
Whether you want to review stored data using the supplied
application or using Microsoft Excel, getting meaningful results
from recorded data is fast and easy:
- Remove the protective USB cover.
- Plug the instrument back into the PC's USB port.
- Use EasyLog software to stop recording, access the instrument's
stored data, and save it to a file that you name on the
PC, all in one easy operation. The file format is Excel-compatible.

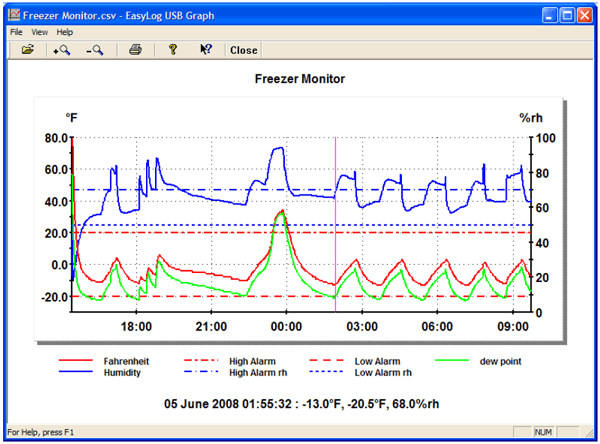

- Immediately EasyLog's Graph utility is enabled to display
all the stored data in one compressed view.
- A cursor allows you to determine signal magnitude and
time and date of acquisition for any value, and a magnifier
utility allows you to zoom in for a closer look over any
range — Easy and fast.

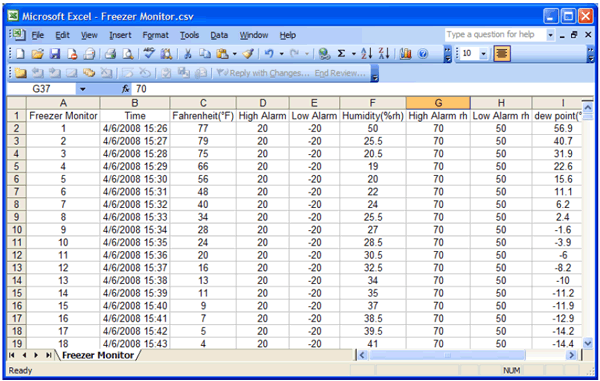

- For more custom analysis and report generation, simply
import the stored data file to Microsoft Excel for virtually
unlimited flexibility in how you view and interpret your
results.
