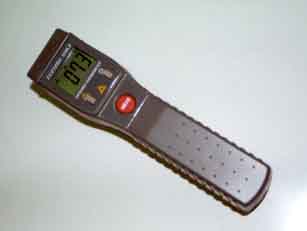

Hand Held Infrared Thermometer With Laser Marker

• Response Time: 1 second

• Spectral Response: 6 to 14mm nominal

• Emissivity: Preset 0.95

• Analog Output: 1mV/ºF

• Detection Element: Thermopile

• Optical Lens: Fresnal Lens

• Sighting: 1-beam laser marker< 1mW (class 2)

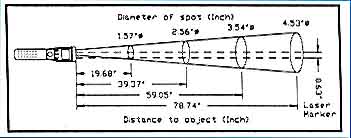

• Field of View: 2.56"Æat 39.37"

Hand Held Infrared Thermometer With Laser Marker General Specifications:

• Display: 3 1/2 digit liquid crystal display (LCD) with maximum reading of 1999

• Over Range: (OL) or (-OL) is displayed

• Low Battery Indication: the battery level is displayed when the battery voltage drops below the operating level.

• Measurement Rate: 2.5 times per second, nominal

• Operating Environment: 32ºF to 122ºF at < 70% relative humidity

• Storage Temperature: -4ºF to 140ºF, 0 to 80% RH with battery removed from meter

• Auto Power Off: 15 seconds approx.

• Standby Consume Current: <1mA

• Battery: 4 pcs 1.5V (AAA size) UM-4 R03

• Battery Life: 100 hours (continuity) typical with carbon-zinc battery (Laser marker and Back-Light not illuminated)

• Dimensions: 170mm(H) x 44mm(W) x 40mm(D)

• Weight: 5.56 oz including batteries

• Temperature Range: 0ºF to 500ºF

• Display Resolution: 1ºF

• Accuracy: +/-3% of reading or +/-5.5ºF, whichever is greater@ 64.4 to 82.4ºF ambient operating temperature.

• Temperature Coefficient: +/-0.2% of reading or +/-0.36ºF, whichever is greater, change in accuracy per ºF change in ambient operating temperature above 82.4F or below 64.4ºF.
