Exergen IRt/c.03 Temperature Sensor

 IRt/c.03

IRt/c.03, Temperature Sensor, Exergen IRt/c.03, Temperature Sensor, Exergen

Sensing Range

-50 to 550 ºF (-45 to 290 ºC)

Ambient Temperature Range

0 to 160 ºF (-18 to 70 ºC)

Optimum Range Selections

Eight models per t/c type
(see Temperature Selection Guide)

Field-of-View

3:1 (17º) approximately

Minimum Spot Size

0.25" (6 mm)

Spectral Response

6.5 to 14 µ

Output Impedance

4 to 8 Kohms approximately

Cable

Thermocouple extension grade, PVC jacket, unshielded

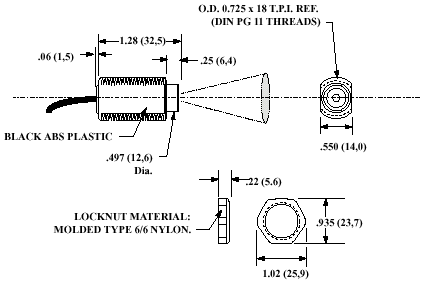

Dimensions

1.49" x .71" Diameter (37.8 x 20 mm)

Weight

1.4 oz (40 g) with cable

Housing

High strength ABS, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe.  Two locknuts supplied.
