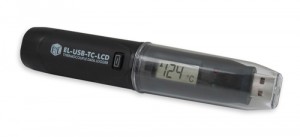

Easylog EL-USB-TC-LCD Thermocouple Temperature USB Data Logger With LCD Display

Easylog, EL-USB-TC-LCD, Thermocouple Temperature, USB Data Logger, LCD Display, Data LoggerEL-USB-TC-LCD K, J, and T-type Thermocouple Temperature USB Data Logger with LCD

  • -200 to +1350°C K-type range

  • -200 to +1190°C J-type range

  • -200 to +390°C T-type range

  • Immediate, delayed and push-to-start mode

  • High contrast LCD shows last, high and low stored readings



This standalone data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple.



The thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the logger and view downloaded data by plugging the module into a PC's USB port and using the supplied software. Data can then be graphed, printed and exported to other applications.



The high contrast LCD can show several different temperature variables. The user can cycle between these using the push button. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.



Calibration Certificates

Lascar’s calibration certificates* are traceable to UKAS or NIST standards depending on your location. Customers in the Americas, or customers ordering through our US sales office will receive NIST traceable certificates generated in our ISO 17025 facility, whilst customers in the UK, EU, Rest-of-world or customers ordering through our UK headquarters will receive UKAS traceable certificates.



Certificates ordered through our online facility will be single-point tested at 25ºC. If you have a requirement for additional points, or require a different temperature point, please contact your nearest Lascar sales office.

* Calibration certificates are not supplied as standard, and must be ordered separately.



Software

The EL-USB-TC-LCD is supplied with a mini-CD containing the configuration software. This is compatible with Windows XP, Vista and 7 (including 64-bit operating systems). Note, the software is not compatible with Mac or Linux.



EL-USB-TC-LCD Brochure
