Industrial Thermocouples & RTD Assemblies

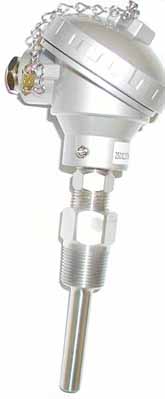

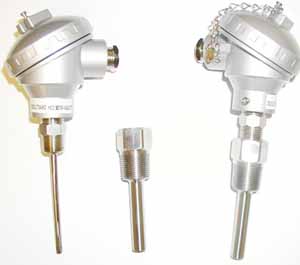

Industrial Thermocouples, RTD Assemblies Industrial Thermocouples and RTD Assemblies are manufactured using high quality contamination and chemical resistant mineral insulated RTD and thermocouple cable.

Industrial Thermocouples and RTD Assemblies have higher temperature capabilities up to (3000ºF) and insure trouble free operation where with minimum failure.

Industrial Thermocouples and RTD Assemblies can be manufactured with a single sensor, dual or multipoint sensors and in various diameters from .010" to 1.125" in diameter with a large variety of termination's like explosion proof heads, FDA (food) Terminal Head or with leads and plugs.

Industrial Thermocouples, RTD Assemblies Most designs can be made for more information consult HCS.

Industrial Thermocouples and RTD Assemblies Features:

• Mineral insulated assemblies
• High pressure rated
• Thermocouple or RTD calibrations
• High Temperature rated and thermal shock resistant
• Explosion proof, moisture and chemical resistant
• High quality control using ASTM and ANSI standard testing
• High performance sheath materials and design capabilities

Industrial Thermocouples and RTD Assemblies Specifications & Design Capabilities:

Calibration Types. . . .J, K, T, N, E, R, S, B RTD
Diameters. . . . . . . .Minimum .010" to 1.250" or more
Length. . . . . . . . . 125" minimum maximum consult HCS
Leads. . . . . . . . . .Stainless Braid, SS Armour, PVC, Fiberglass
Junctions. . . . . . . .Grounded, Ungrounded, Exposed, Dual Isolated
                        Multipoint common, isolated or spaced
                        Dual grounded or dual exposed isolated
Termination Heads. . . .Explosion Resistant, Moisture/Chemical resistant,

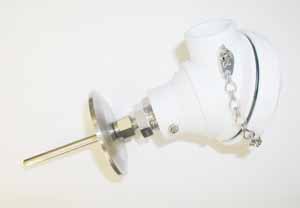

  FDA (food), Polypropylene, Aluminum, thermosetting
  Plastic Bare leads, Spade Lugs, Standard Male Plug,
  Standard Female Jack, Miniature Plugs, Jacks
Right angled. . . . . . with or without protection tubes
Styles. . . . . . . . . Bare wire, Nipple Union Nipple, Leads, head
  Process fittings, Twell fittings, flanged magnetic,
  Spring loaded, Flexible

To order specify application, max temperature, max pressure and style along with diameter length and termination.

For Quick Delivery From Stock Call

CANADA & USA TOLL FREE: 1 - 800 - 279-9912
