Process Air and Duct Heaters

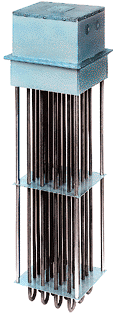

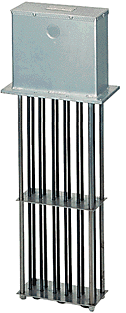

Process Heaters, Air Heaters, Duct Heaters, Process Air Heaters Process Air Heaters and Duct Heaters are available in a wide variety of wattage's, Voltages and sizes to meet most applications. Process Air Heaters and Duct Heaters are available with thermostats, thermocouples or hi Limit cutouts as called for by the process.

Process Air Heaters and Duct Heaters are made with Dust Resistant Housings (NEMA 12), Washdown NEMA 4 Stainless steel Housing, or Explosion Resistant NEMA 7 Construction. The elements used could be finned or regular tubular elements to enhance heat transfer.

Process Air Heaters and Duct Heaters can be designed to fit in most Ducts or could be made to order as required.

Process Air Heaters and Duct Heaters Features:

High air temperatures
High wattage's 2.5 megawatts
Corrosion/oxidation resistant sheath
Explosion proof housing construction option
Wide range of voltages available
3" insulation reduces heat loss
Custom sizes and wattage's in single or three phase

Process Air Heaters and Duct Heaters Specifications / Design Capabilities:

Voltages. . . . . . . . . . . . . . . . 120 to 600 VAC Single or Three Phase 2
Watt Densities. . . . . . . . . . . . 10 to 67 Watts/inch
Process temperatures. . . . . . . .1200ºF (650ºC)
Elements. . . . . . . . . . . . . . . . Incolloy Tubular or Finned Tubular / Nichrome
Sensors. . . . . . . . . . . . . . . . .Thermocouple J, K, In air For Process Temp, Thermostats 3/16" Bul and capillary Air Temp
Hi Limits. . . . . . . . . . . . . . . . Thermocouple braized to the sheath, Thermostat with reset braized to sheath
Terminal Enclosures. . . . . . . . .Dust Resistant NEMA 12, Explosion Resistant NEMA 7, Corrosion Resistant NEMA 4X, Moisture Resistant NEMA 4
Options. . . . . . . . . . . . . . . . .Built In Controls / Stant Off Enclosures

Air Duct Heaters
