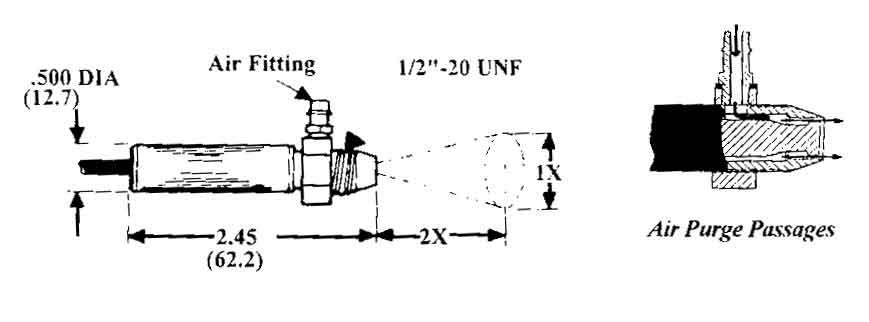

IRt/c.2 Non Contact Temperature Sensor from Exergen
| IRt/c.2 |
2:1 Field-of-View |
|
| |
|
| Sensing Range |
-50 to 2000° F (-45 to 1100° C
|
Linear Range
Selections* |
8 Models per thermocouple type
(see Temperature Selection Guide)
|
| Field-of-View |
35° approximately
|
| Minimum Spot Size |
0.16" (4 mm)
|
| Output Impedance |
4 to 8 Kohms (varies by model)
|
| Dimensions |
2.45" x 0.5" Diameter (62 x 13 mm)
|
| Weight |
1.6 oz (44 g) with cable
|
| Air Purge |
Built-in
|
Back to IRt/c Specifications
|
