IRt/c.2G-J-37C Non Contact Temperature Sensor
from Exergen

IRt/c.2G-J-37C Non Contact Temperature Sensor from Exergen

 IRt/c.2G-J-37C
IRt/c.2G-J-37C, Non Contact Temperature Sensor, Exergen
IRt/c.2G-J-37C, Non Contact Temperature Sensor, Exergen

Special Performance Medical Model







Sensing Range

Human Body Temperature

Optimum Range Selections

+/- 0.2ºC from 35.5 to 39.4ºC +/- 0.3ºC from 25 to 40ºC

Field-of-View

1:1 (60º) approximately

Minimum Spot Size

0.16" (4 mm)

Spectral Response

2 to 20 µ

Output Impedance

10 Kohms approximately

Cable

Twisted shielded pair of base thermocouple material (J, K, etc.), 3 ft. (.9) m) standard length, Teflon sheathed, rated to 392ºF (200ºC) continuous service.

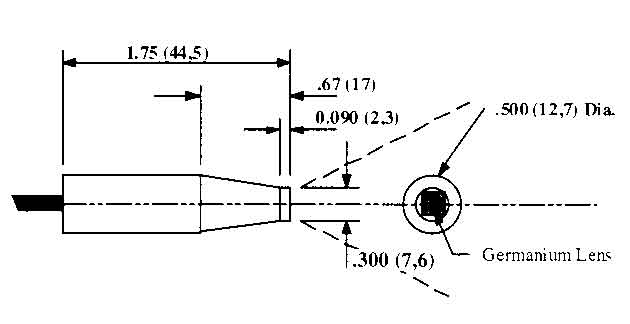

Dimensions

1.75" x .500" Diameter (44 x 12.7 mm)

Weight

1.4 oz (40 g) with cable

Housing

Stainless steel, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal.

Air Purge

none
