IRt/C.5 Non Contact Temperature Sensor from Exergen

 IRt/c.5

IRt/C.5, Non Contact Temperature Sensor, Exergen IRt/C.5, Non Contact Temperature Sensor, Exergen

Sensing Range

-50 to 1200ºF (-45 to 650ºC)

Optimum Range Selections

Eight models per t/c type
(see Temperature Selection Guide)

Field-of-View

5:1 (11º) approximately

Minimum Spot Size

0.8" (20 mm)

Spectral Response

6.5 to 14 µ

Output Impedance

4 to 8 Kohms approximately

Cable

Twisted shielded pair of base thermocouple material (J, K, etc.), 3 ft. (.9) m) standard length, Teflon sheathed, rated to 392ºF (200ºC) continuous service.

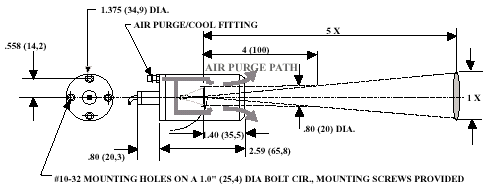

Dimensions

3.4" x 1.375" Diameter (86 x 35 mm)

Weight

6.5 oz (184 g) with cable

Housing

Stainless steel, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal.

Air Purge

Built-in; cooling capacity to 400ºF (200ºC) ambient; 3; (0.9 m) polyurethane tubing provided
