IRt/c.SV Non Contact Temperature Sensor from Exergen

 IRt/c.SV

ITt/c.SV, Non Contact Temperature Sensor, Exergen ITt/c.SV, Non Contact Temperature Sensor, Exergen

Sensing Range

-50 to 1200ºF (-45 to 650ºC)

Ambient Temperature Range

0 to 212ºF (-18 to 100ºC)

Optimum Range Selections

Eight models per t/c type
(see Temperature Selection Guide)

Field-of-View

1:1 (60º) approximately

Minimum Spot Size

0.3" (8 mm)

Spectral Response

6.5 to 14 µ

Output Impedance

3 Kohms approximately

Cable

Twisted shielded pair of base thermocouple material (J, K, etc.), 3 ft. (.9) m) standard length, Teflon sheathed, rated to 392ºF (200ºC) continuous service.

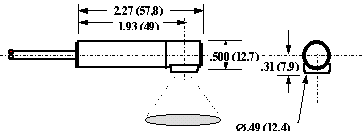

Dimensions

2.27" x .50" Diameter (57.8 x 12.7 mm)

Weight

1.4 oz (40 g) with cable

Housing

Stainless steel, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal.
